Nexus 9 Receives Teardown Treatment, Internals Exposed

We may earn a commission when you click links to retailers and purchase goods. More info.

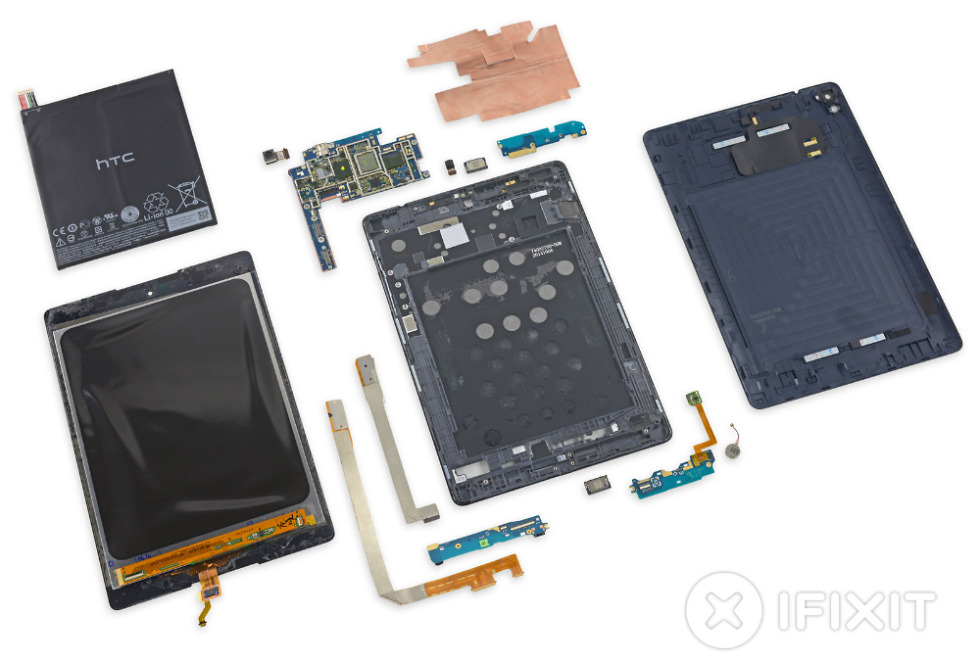

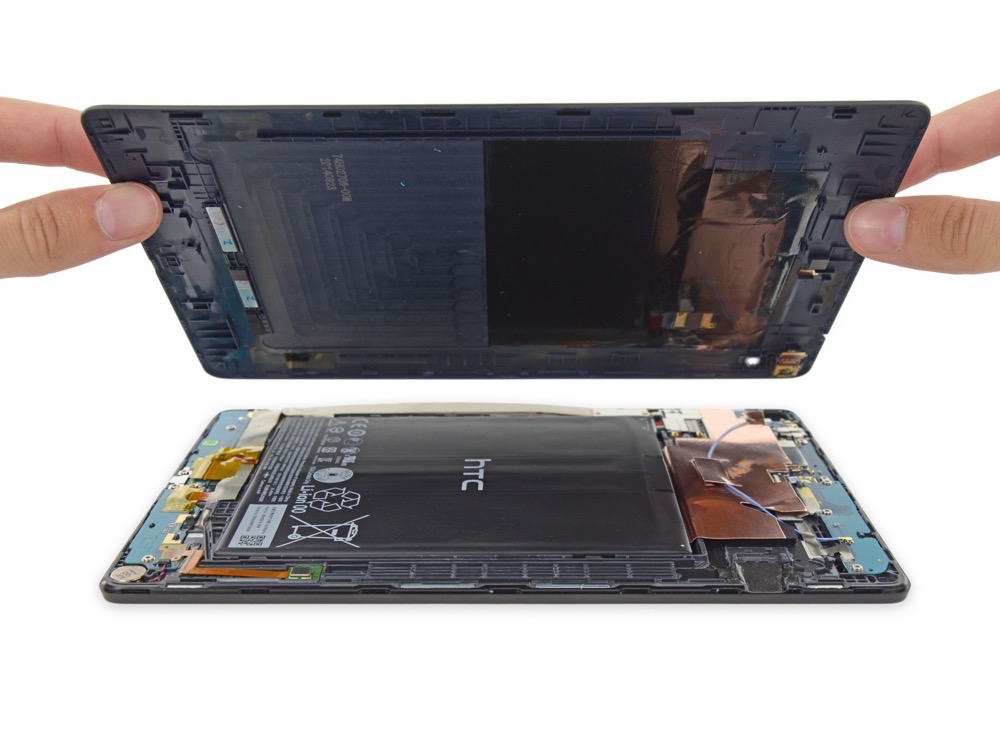

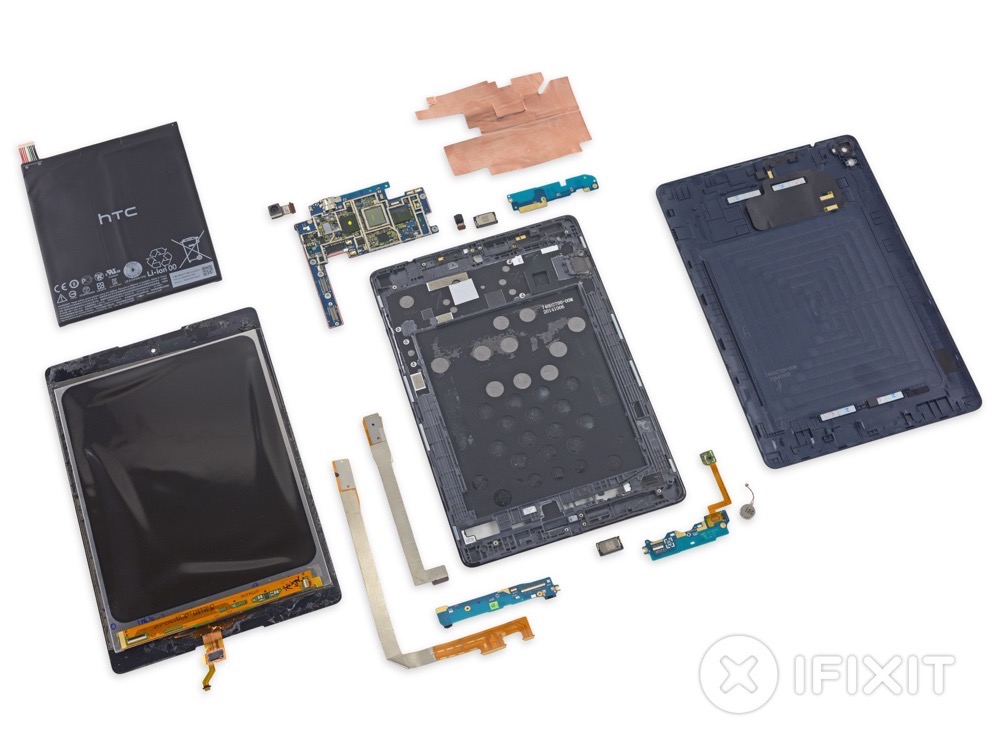

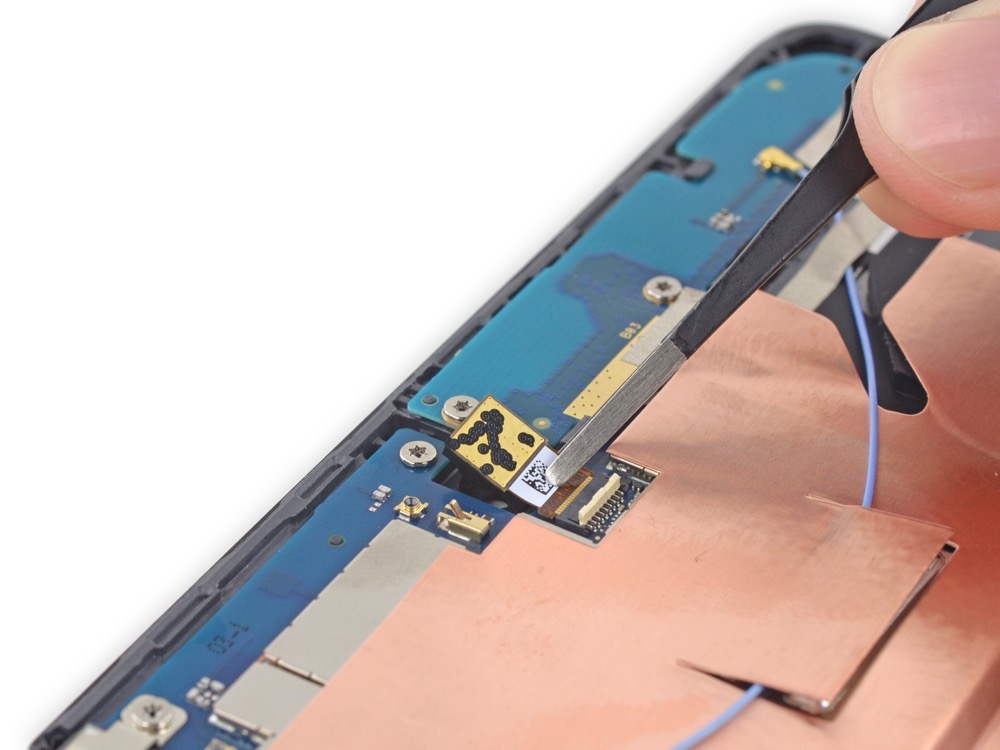

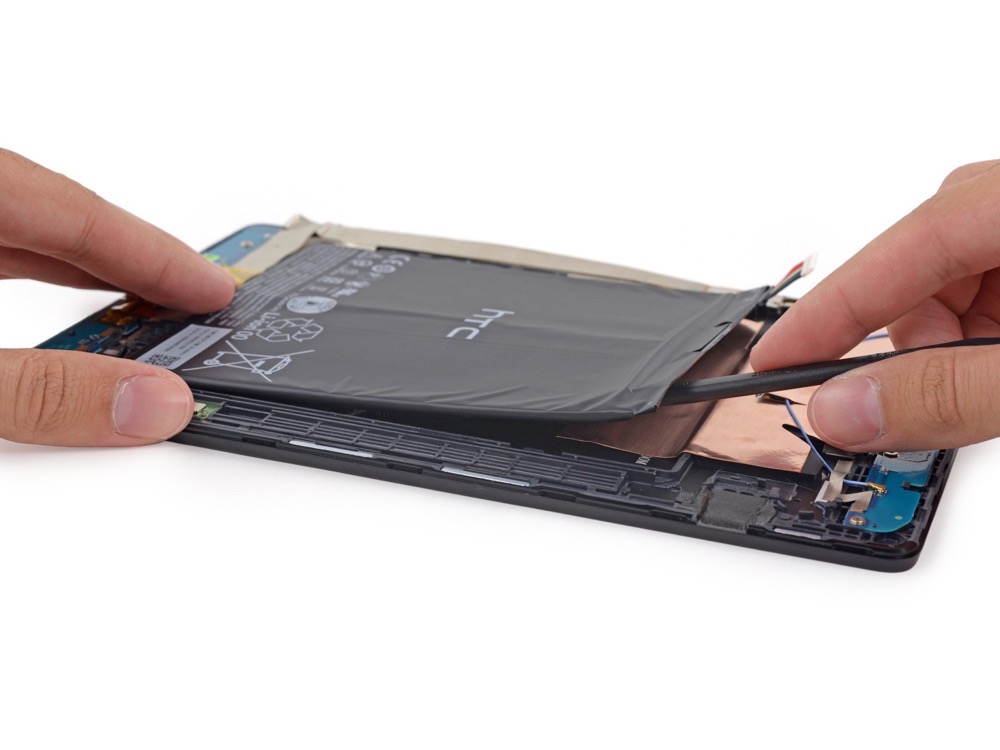

The Nexus 9 is the newest device to receive iFixit’s teardown treatment, resulting in an answer to the age old question, “Can I fix this thing myself?” After peeling the back plate off, carefully removing the 6700mAh battery, dissecting all of its camera, speaker, and vibrator modules, iFixit claims that the Nexus 9 repairs will not exactly be user friendly.

One of the more interesting parts of a teardown is to look at the board which contains the device’s brains. On the Nexus 9, the main workhorse is the 64-bit Tegra K1 processor, followed up by Epida/Micron Technology storage, Samsung Flash memory, Broadcom WiFi module, and a Texas Instruments chip labeled TI47CFP91 T65913B3D9.

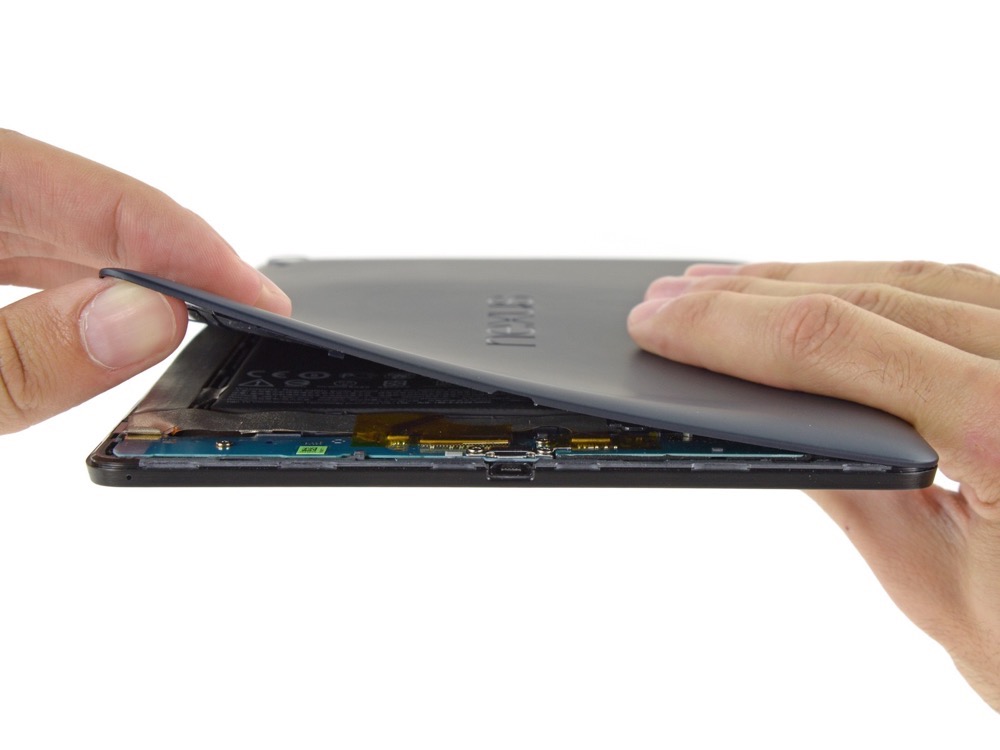

Overall, on a score system of 1 to 10, the Nexus 9 received a 3. While the back is easily removed without the need for heat or tools, once you are inside, you are met with a maze of delicate wiring and tape. Long story short, if something happens to your Nexus 9, best to leave the repairs to the professionals.

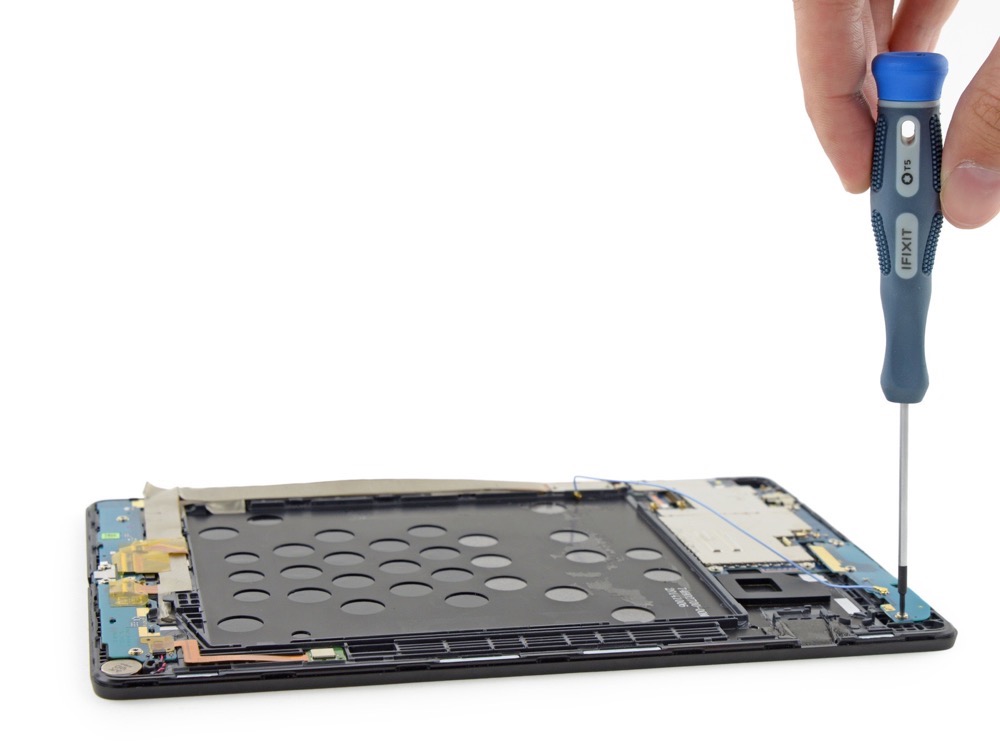

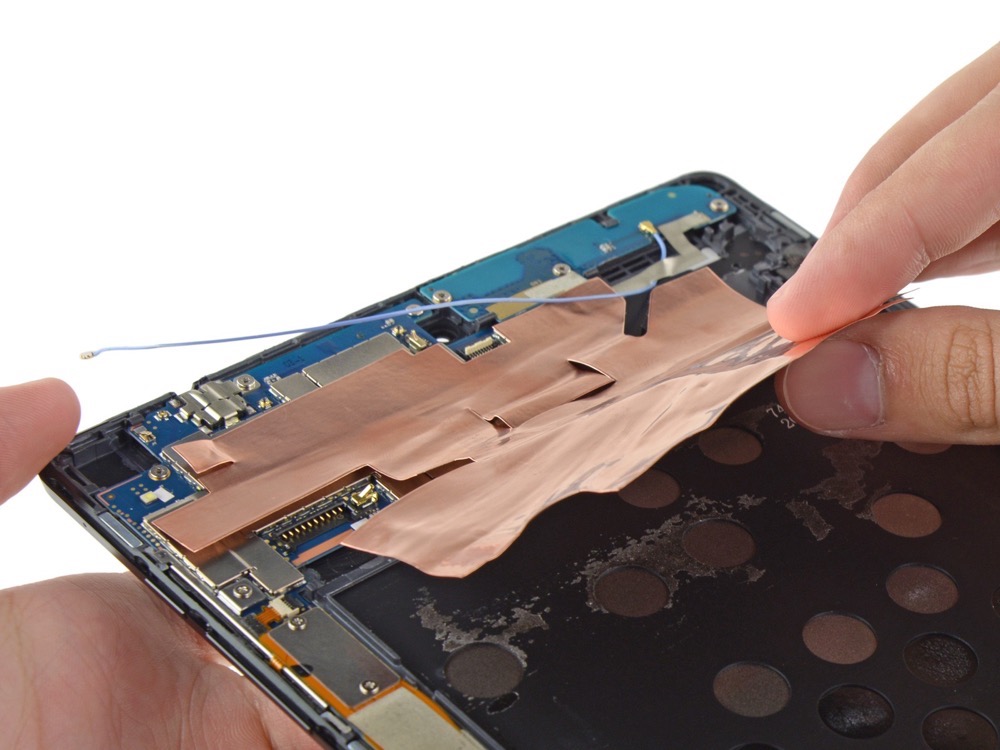

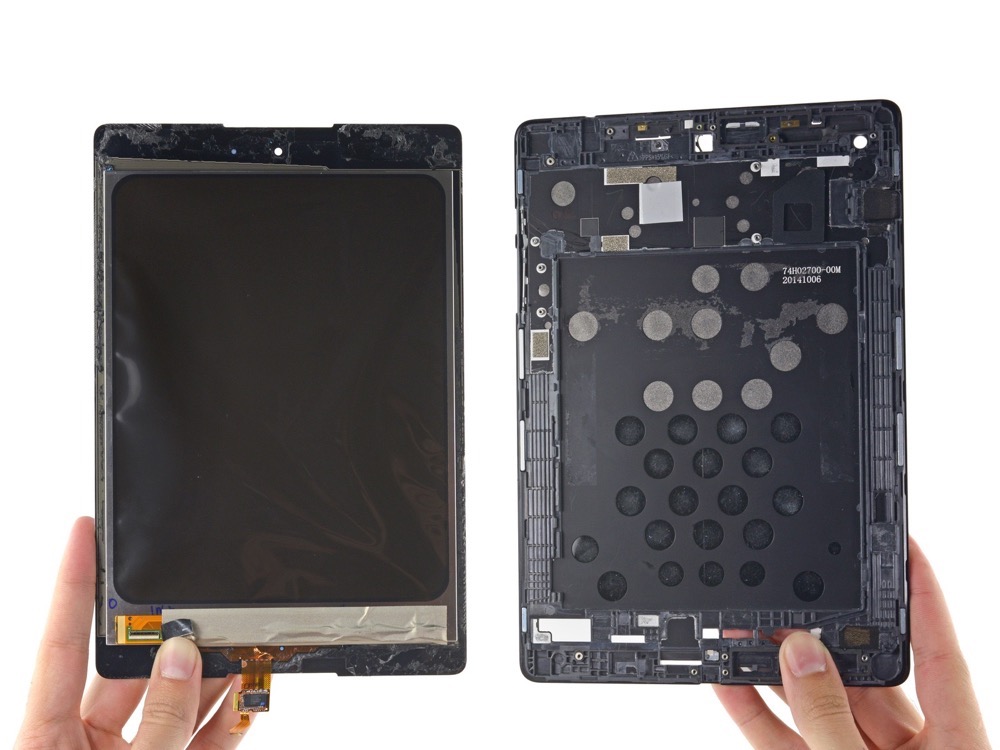

Check out the teardown gallery below.

j1OS5BSyX1WXQVKv G2LiZNdLa1esUO6v qmXQlERC2XoESnmS gQiESFSQHUPGTNGy KvkrYJ6WINUOuOTw

J6JNGiLFPLGDOs6D AnfYhy1AV4tHfONT iHeecNfvWwgj5MBA iNNFarSIQonLydoW SVGVcRPICoALqGtZ

Via: iFixit
