DIY Hack Brings DROID Bionic Webtop and HDMI Mirroring to Your Car

A crafty DL reader with a new DROID Bionic and car dock decided he wanted webtop and Netflix from anywhere.  So what did he do?  Hacked the s.o.b. to work through his car’s entertainment system.  He now has webtop and HDMI mirroring throughout his entire car.  Sure it took some epoxy, an HDMI cable and a drill, but I’d say it was well worth the effort.

Here are his brief instructions:

- First I took apart the car dock and grinded/drilled an opening so I could fit the micro HDMI cable.
– Then I docked the phone. Then aligned and plugged in the micro HDMI into the phone.
– I then epoxied the HDMI onto the case and let it dry.
– The stock power port was adjusted to match with the HDMI port and epoxied that as well.
– I put everything back together.

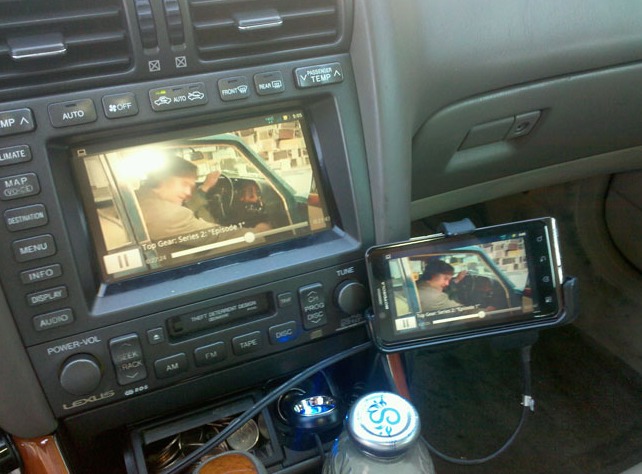

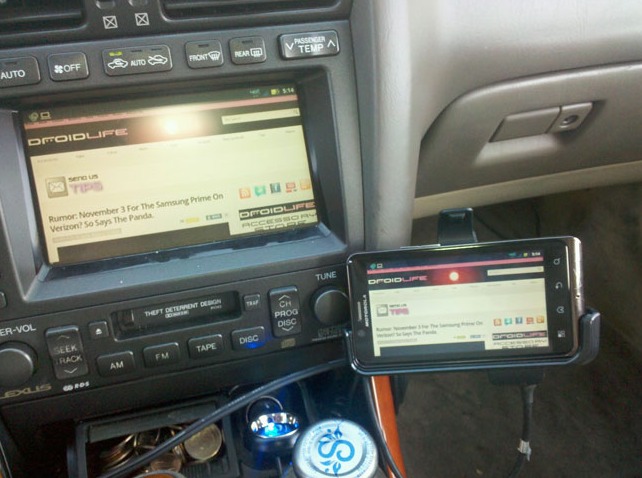

Check out additional pics of Netflix and webtop after the jump.

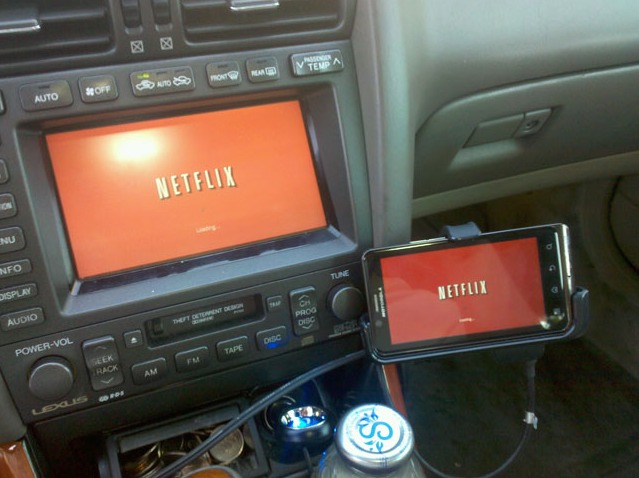

Netflix:

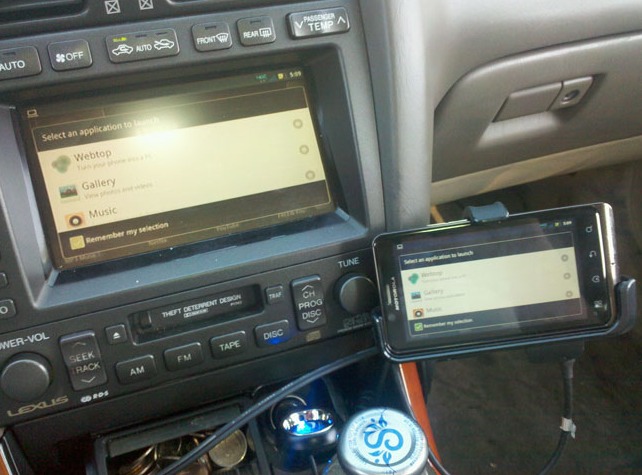

Webtop:

Via:  Droid Forums

Cheers Keith!

  • wnrussell

    Try Slingbox and watch TV like this!

  • Djuram54

    Look people all cars since 2009 employ a type of intergration with gps to tell when the car goes over 10mph. u cant bypass it unless u invest $200 for a brand/ lockpic. I have a cadillaccts coupe 2011 and no mods worked with my android or iphone or ipod. The cars electrical system is all tied in . back 4 yrs ago u could just ground the brown wire but now car senses with speed and gpd and shuts down the screen. now all u people gotta understand having something lije this isnt for the driver but to entertain the family and keep the driver sane

  • driveByBraille

    Now if he can only figure out how to integrate that tape deck into Android…

  • Spc Hicks09

    Who the hell still has a car with a TAPE PLAYER!?!

    • Anonymous

      Someone who has a car with a screen that displays red as orange… Guy needs to color correct the display for sure.

  • Justin

    Nice set up

  • Jnmigr

    Pro for you, I already see Motorola posting this as a way to rule them all.

  • Anonymous

    This car has a tape deck, WTF!

    • BBorell

      See my reply to Tboltuser above.

  • Jonathan Hunt

    Well I knew it wasn’t an easy job.  Involves converters, a/v switches and an HDMI/Composite converter.

    Should I still hold onto my dreams of head unit manufacturers waking up and creating displays with HDMI inputs?!?!

  • Keith

    Hey there everyone. I am the guy that has this setup. I posted an update to clarify my setup on droid forums. More photos can be found on the droid forums link posted in the original story.

    To answer some questions:

    1. The sole purpose for this mod is for the two 9.2 inch headrest monitors.
    Please don’t assume I will be driving around with Netflix running on my
    main screen. The main head unit screen can be switched between inputs
    and stock navigation.

    2. Yes my car is old. 2003 Lexus GS 300

    3. Yes, my car comes with a tape deck and also a 6 disc changer in the glove box.

    3. Yes, the head unit is the factory 7 inch navigation screen. I installed an
    rgb video converter to switch between stock navigation and other
    inputs. There is also a digital video/audio source switch box installed
    as well. The input signal is then sent to a video amplifier and
    distributed to the headrests and stock screen.

    4. Yes, my stock head unit is touch screen, but does not work with the phone.

    5. I already had a hdmi to composite converter prior to getting the Droid Bionic.

    6. The extra wire you see in the photo is a 3.5mm audio cable for my fm
    transmitter. Since I have installed the hdmi from the phone, all the
    sound is routed from the hdmi cable back into the composite converter,
    then to the fm module, as well as the video amplifier. No need for the
    3.5mm cable anymore.

    7. I have had my car audio/system like this for years. All I did was integrate the phone into the setup.

    8. Yes, every time I dock the phone, I can choose webtop/mirror modes.

    9. Yes, I can run Google navigation on all the screens.

    10. Youtube app will show on the car screens, but the phone itself goes
    black while playing video. TV.com app shows on the car screens, but is
    will not scale to fit the screens.
